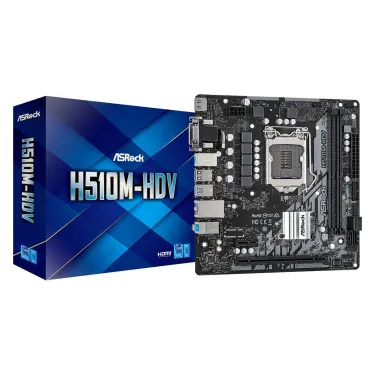

90-MXBG20-A0UAYZ - ASRock Intel H510 Micro ATX DDR4-SDRAM Motherboard

SKU
90-MXBG20-A0UAYZ
Brand
ASRock
Availability

In stock

Product Overview

The ASRock 90-MXBG20-A0UAYZ is available at BulkDevices. Contact our customer service team for more information.

Manufacturer ASRock
Manufacturer Part No. 90-MXBG20-A0UAYZ
Condition New

Expert Team Support

Looking for a quote for special price or bulk quantity

Easy Return

Enjoy hassle-free returns on all purchases.

Secure Payment

Shop confidently with our secure payment options.

Product Description

Technical details
Motherboard chipset familyIntel
Motherboard chipsetIntel H510
Motherboard form factormicro ATX
Component forPC
Audio
Audio output channels7.1 channels
Performance
Number of HDDs supported4
Windows operating systems supportedWindows 10 x64
Motherboard chipset familyIntel
Motherboard chipsetIntel H510
Audio output channels7.1 channels
Motherboard form factormicro ATX
Component forPC
Processor
Processor manufacturerIntel
Compatible processor seriesIntel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Processor socketLGA 1200
Memory
Number of memory slots2
Memory slots typeDIMM
Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
Non-ECCYes
Supported memory clock speeds2133,2400,2666,2800,2933,3200 MHz
Maximum internal memory64 GB
Storage controllers
Number of HDDs supported4
Supported storage drive interfacesSATA III
Internal I/O
Supported storage drive interfacesSATA III
USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
TPM connectorYes
Front panel audio connectorYes
CPU fan connectorYes
ATX Power connector (24-pin)Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 2.0 ports quantity4
VGA (D-Sub) ports quantity1
PS/2 ports quantity2
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
DVI-D ports quantity1
Network
Ethernet LANYes
Wi-FiNo
Wake-on-LAN readyYes
LAN controllerRealtek RTL8111H
Ethernet interface typeGigabit Ethernet
Features
Windows operating systems supportedWindows 10 x64
Motherboard chipset familyIntel
Motherboard chipsetIntel H510
Audio output channels7.1 channels
Motherboard form factormicro ATX
Component forPC
Harmonized System (HS) code84733020
Expansion slots
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
BIOS
BIOS typeEFI AMI
BIOS memory size128 Mbit
ACPI version6.0
System Management BIOS (SMBIOS) version2.7
Software
Windows operating systems supportedWindows 10 x64
Weight & dimensions
Height70 mm
Weight1 kg
Width197 mm
Depth188 mm
Packaging content
Cables includedSATA
Other features
Height70 mm
Weight1 kg
