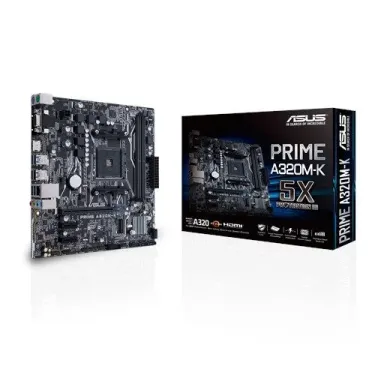

90MB0TV0-M0EAY0 - Asus AMD AM4 Prime A320M-K Motherboard

Detail:	Asus AMD AM4 Prime A320M-K Motherboard
SKU:	90MB0TV0-M0EAY0
Brand:	ASUS
Availability:	In stock

Your Save: 0.00Was £0.00 (Get a Quote)

Easy Return

Enjoy hassle-free returns on all purchases.

Secure Payment

Shop confidently with our secure payment options.

Free Shipping

Free shipping on all orders*.

Product Overview

Product Information

Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD A320
HDMI version	1.4b
Motherboard form factor	micro ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64
Motherboard chipset family	AMD
Motherboard chipset	AMD A320
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Expansion card interfaces
Audio connector	Yes
Processor
Processor manufacturer	AMD
Compatible processor series	AMD A, AMD Athlon, AMD Athlonâ„¢ X4, AMD Ryzenâ„¢ 3, 2nd Generation AMD Ryzenâ„¢ 3, 3rd Generation AMD Ryzenâ„¢ 3, AMD Ryzenâ„¢ 5, 2nd Generation AMD Ryzenâ„¢ 5, 3rd Generation AMD Ryzen 5, AMD Ryzenâ„¢ 7, 2nd Generation AMD Ryzenâ„¢ 7, 3rd Generation AMD Ryzenâ„¢ 7, 3rd Generation AMD Ryzenâ„¢ 9
Processor socket	Socket AM4
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	2133,2400,2666,2933,3200 MHz
Maximum internal memory	32 GB
Storage controllers
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA
Graphics
Maximum graphics card memory	2048 MB
Graphics card family	AMD
Internal I/O
Audio connector	Yes
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
S/PDIF out connector	Yes
Peripheral (Molex) power connectors (4-pin)	1
Number of SATA connectors	4
Number of EATX power connectors	1
Number of chassis fan connectors	1
Front panel audio connector	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	1
S/PDIF out port	Yes
PS/2 ports quantity	2
HDMI version	1.4b
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
COM ports quantity	1
Network
Ethernet LAN	Yes
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Features
Power source type	ATX
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64
Motherboard chipset family	AMD
Motherboard chipset	AMD A320
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Harmonized System (HS) code	84733020
Expansion slots
PCI Express x1 (Gen 2.x) slots	2
PCI Express x16 slots	1
BIOS
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	128 Mbit
Power
Power source type	ATX
Video
Maximum graphics card memory	2048 MB
Graphics card family	AMD
Software
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64
Weight & dimensions
Height	247 mm
Weight	800 g
Width	226 mm
Depth	221 mm
Other features
Height	247 mm
Weight	800 g
