90MB17L0-M0EAY0 - Asus PROART B550-CREATOR Motherboard

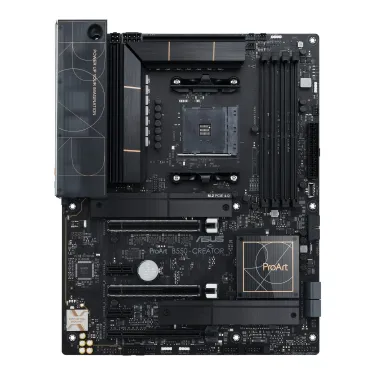

Detail:	Asus PROART B550-CREATOR Motherboard
SKU:	90MB17L0-M0EAY0
Brand:	ASUS
Availability:	In stock

£276.00 £230.00

Your Save: 57.50Was £287.50 25% off

Easy Return

Enjoy hassle-free returns on all purchases.

Secure Payment

Shop confidently with our secure payment options.

Free Shipping

Free shipping on all orders*.

Product Overview

Product Information

Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Supported processor sockets	Socket AM4
Parallel processing technology support	Not supported
HDMI version	2.1
Motherboard form factor	ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
RAID levels	0, 1, 10
Supported processor sockets	Socket AM4
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Expansion card interfaces
Audio connector	Yes
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzenâ„¢ 3, AMD Ryzenâ„¢ 5, AMD Ryzenâ„¢ 7, 3rd Generation AMD Ryzenâ„¢ 9, AMD Ryzen 9 5th Gen
Supported processor sockets	Socket AM4
Processor socket	Socket AM4
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800,4866,5100 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	6
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Internal I/O
Thunderbolt headers	2
Front panel connector	Yes
Audio connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Number of SATA III connectors	4
Number of COM connectors	1
Number of chassis fan connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	2
Thunderbolt ports quantity	2
S/PDIF out port	Yes
PS/2 ports quantity	1
Microphone in	Yes
Headphone outputs	5
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Wake-on-LAN ready	Yes
LAN controller	Intel I225-V
Ethernet interface type	2.5 Gigabit Ethernet
Features
Windows operating systems supported	Windows 10 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Supported processor sockets	Socket AM4
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	SupremeFX S1220A
Harmonized System (HS) code	84733020
Expansion slots
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	2
BIOS
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
Software
Windows operating systems supported	Windows 10 x64
Drivers included	Yes
Weight & dimensions
Height	68 mm
Weight	1 kg
Width	305 mm
Depth	244 mm
Packaging content
Drivers included	Yes
Cables included	SATA
Other features
Height	68 mm
Weight	1 kg
