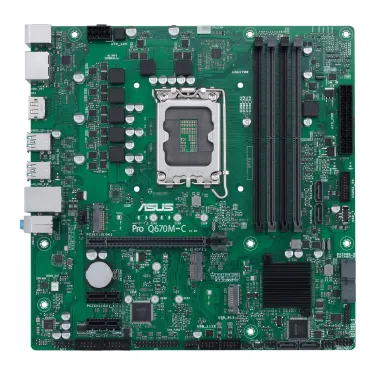

90MB19E0-M0EAYC - Asus Micro-ATX Q670 Business motherboard

Detail:	Asus Micro-ATX Q670 Business motherboard
SKU:	90MB19E0-M0EAYC
Brand:	ASUS
Availability:	In stock

Your Save: 0.00Was £0.00 (Get a Quote)

Easy Return

Enjoy hassle-free returns on all purchases.

Secure Payment

Shop confidently with our secure payment options.

Free Shipping

Free shipping on all orders*.

Product Overview

Product Information

Internal I/O
Number of M.2 (M) slots	2
Audio connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	6
Number of COM connectors	2
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel Q670
Supported processor sockets	LGA 1700
HDMI version	2.1
Cooling type	Active
Motherboard form factor	micro ATX
Component for	PC
Maximum internal memory supported by processor	128 GB
Number of mounting holes	8
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	6
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10, Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel Q670
RAID levels	0, 1, 5, 10
Supported processor sockets	LGA 1700
Cooling type	Active
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Expansion card interfaces
Audio connector	Yes
Processor
Processor manufacturer	Intel
Maximum internal memory supported by processor	128 GB
Compatible processor series	IntelÂ® CeleronÂ®, IntelÂ® Coreâ„¢ i3, IntelÂ® Coreâ„¢ i5, IntelÂ® Coreâ„¢ i7, IntelÂ® Coreâ„¢ i9, Intel Pentium G
Supported processor sockets	LGA 1700
Processor socket	LGA 1700
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Non-ECC	Yes
Supported memory clock speeds	4800 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
Maximum internal memory	128 GB
Storage controllers
Number of HDDs supported	6
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	8
RAID support	Yes
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
DisplayPort version	1.4
USB 2.0 ports quantity	2
PS/2 ports quantity	2
Microphone in	Yes
Headphone outputs	2
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Features
Power source type	ATX
Number of mounting holes	8
Windows operating systems supported	Windows 10, Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel Q670
Supported processor sockets	LGA 1700
Cooling type	Active
Compatible operating systems	WindowsÂ® 11 64-bit, WindowsÂ® 10 64-bit
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
BIOS
BIOS memory size	256 Mbit
Power
Power source type	ATX
Software
Windows operating systems supported	Windows 10, Windows 11
Drivers included	Yes
Weight & dimensions
Height	51 mm
Weight	634 g
Width	244 mm
Depth	244 mm
Packaging content
Drivers included	Yes
Cables included	SATA
Other features
Height	51 mm
Weight	634 g
Compatible operating systems	WindowsÂ® 11 64-bit, WindowsÂ® 10 64-bit
