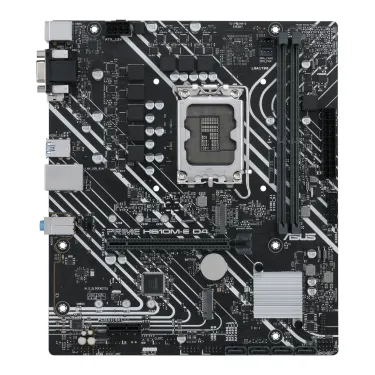

90MB19N0-M0EAY0 - ASUS Prime H610M-E D4 mATX Motherboard for Intel LGA1700 CPUs

SKU
90MB19N0-M0EAY0
Brand
ASUS
Availability

In stock

Product Overview

The ASUS 90MB19N0-M0EAY0 is available at BulkDevices. Contact our customer service team for more information.

Manufacturer ASUS
Manufacturer Part No. 90MB19N0-M0EAY0
Condition Refurbished

Expert Team Support

Looking for a quote for special price or bulk quantity

Easy Return

Enjoy hassle-free returns on all purchases.

Secure Payment

Shop confidently with our secure payment options.

Product Description

Internal I/O
Number of M.2 (M) slots2
12V power connectorYes
Supported storage drive interfacesM.2, SATA
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
TPM connectorYes
S/PDIF out connectorYes
Number of SATA III connectors4
Number of COM connectors1
Number of chassis fan connectors2
Front panel audio connectorYes
EPS power connector (8-pin)Yes
CPU fan connectorYes
ATX Power connector (24-pin)Yes
RGB LED pin headerYes
Technical details
Number of displays supported3
Motherboard chipset familyIntel
Motherboard chipsetIntel H610
HDMI version2.1
Motherboard form factormicro ATX
Component forPC
Audio
Audio output channels7.1 channels
Performance
Supported storage drive typesHDD & SSD
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Motherboard chipset familyIntel
Motherboard chipsetIntel H610
Audio output channels7.1 channels
Motherboard form factormicro ATX
Component forPC
Processor
Processor manufacturerIntel
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
Maximum number of SMP processors1
Processor socketLGA 1700
Memory
Number of memory slots2
Memory slots typeDIMM
Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
Non-ECCYes
Supported memory clock speeds2133,2400,2666,2800,2933,3000,3200 MHz
Maximum internal memory64 GB
Unbuffered memoryYes
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA
Graphics
Number of displays supported3
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
DisplayPort version1.4
USB 2.0 ports quantity2
VGA (D-Sub) ports quantity1
PS/2 ports quantity2
Microphone inYes
Headphone outputs1
HDMI version2.1
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
DisplayPorts quantity1
Network
Ethernet LANYes
Wi-FiNo
Ethernet interface typeGigabit Ethernet
Features
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Motherboard chipset familyIntel
Motherboard chipsetIntel H610
Audio output channels7.1 channels
Motherboard form factormicro ATX
Component forPC
Harmonized System (HS) code84733020
Expansion slots
Number of M.2 (M) slots2
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
BIOS
BIOS typeUEFI AMI
BIOS memory size128 Mbit
Software
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Drivers includedYes
Weight & dimensions
Height51 mm
Weight842 g
Width244 mm
Depth211 mm
Packaging content
Drivers includedYes
Cables includedSATA
Other features
Height51 mm
Weight842 g
