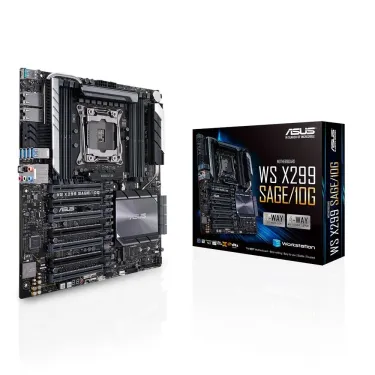

90SW00H0-M0EAY0 - Asus Ws X299 Sage/10G Workstation Intel X299 2066 Ceb DDR4 7 X Pcie LGA 2066 CEB Motherboard
| Detail: | Asus Ws X299 Sage/10G Workstation Intel X299 2066 Ceb DDR4 7 X Pcie LGA 2066 CEB Motherboard |
| SKU: | 90SW00H0-M0EAY0 |
| Brand: | ASUS |
| Availability: | In stock |
£956.95
£797.46
Your Save: 199.36Was £996.82 25% off
Easy Return
Enjoy hassle-free returns on all purchases.
Secure Payment
Shop confidently with our secure payment options.
Free Shipping
Free shipping on all orders*.
Product Information
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Supported storage drive interfaces | SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 8 |
| Number of EATX power connectors | 1 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® X299 |
| Parallel processing technology support | 4-Way CrossFireX, 4-Way SLI |
| Motherboard form factor | SSI CEB |
| Component for | Workstation |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® X299 |
| RAID levels | 0, 1, 5, 10 |
| Certification | CE |
| Audio output channels | 7.1 channels |
| Motherboard form factor | SSI CEB |
| Component for | Workstation |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 2066 |
| Memory | |
| Number of memory slots | 8 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Quad-channel |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Maximum internal memory | 512 GB |
| Storage controllers | |
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | 4-Way CrossFireX, 4-Way SLI |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® X550-AT2 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Features | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® X299 |
| Certification | CE |
| Audio output channels | 7.1 channels |
| Motherboard form factor | SSI CEB |
| Component for | Workstation |
| Audio chip | Realtek ALC S1220A |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 7 |
| BIOS | |
| BIOS type | UEFI |
| Clear CMOS button | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Certificates | |
| Certification | CE |
| Weight & dimensions | |
| Height | 287 mm |
| Weight | 2.2 kg |
| Width | 305 mm |
| Depth | 267 mm |
| Packaging content | |
| Cables included | SATA |
| Other features | |
| Height | 287 mm |
| Weight | 2.2 kg |
