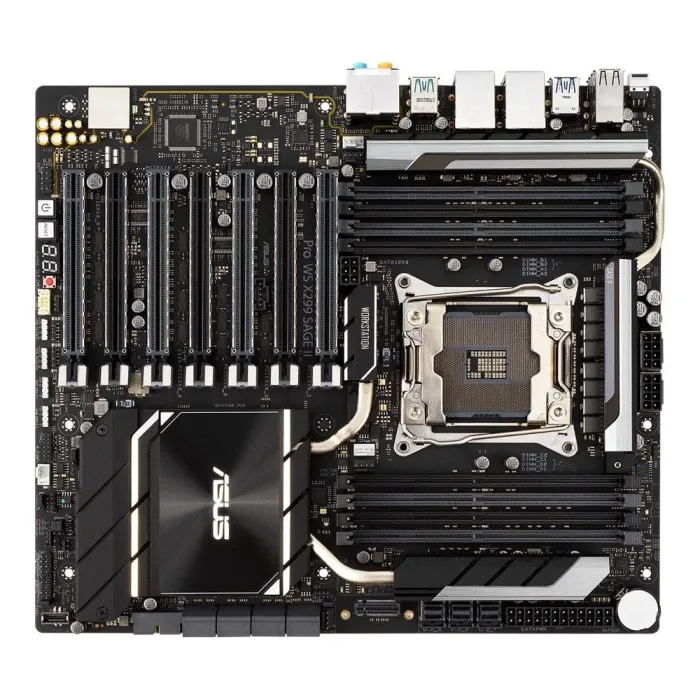

90SW00U0-M0EAY0 - ASUS Pro WS X299 SAGE II CEB Motherboard for Intel LGA2066
* NOTE: Image may not exactly match the product
£622.00
Incl. VAT:
£746.40
Incl. VAT:
Product Overview
The ASUS 90SW00U0-M0EAY0 is available at BulkDevices. Contact our customer service team for more information.
| Manufacturer | ASUS |
|---|---|
| Manufacturer Part No. | 90SW00U0-M0EAY0 |
| Condition | New |
| Warranty | 30-days |
Product Description
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Supported storage drive interfaces | SATA |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 8 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® X299 |
| Trusted Platform Module (TPM) | Yes |
| Parallel processing technology support | 4-Way CrossFireX, 4-Way SLI |
| Number of processors supported | 1 |
| Number of DIMM slots | 8 |
| Motherboard form factor | CEB |
| Component for | Workstation |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® X299 |
| RAID levels | 0, 1, 5, 10 |
| Trusted Platform Module (TPM) | Yes |
| Audio output channels | 7.1 channels |
| Motherboard form factor | CEB |
| Component for | Workstation |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ X-series |
| Processor socket | LGA 2066 (Socket R4) |
| Processor number of cores supported | 6, 8, 10, 12, 14, 16, 18 |
| Memory | |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Non-ECC | Yes |
| Supported memory clock speeds | 2400,2666,2933,3600,4000,4133,4200,4266 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive interfaces | SATA |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | 4-Way CrossFireX, 4-Way SLI |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel I225-LM |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Features | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® X299 |
| Compatible operating systems | Windows 10 64-bit |
| Audio output channels | 7.1 channels |
| Motherboard form factor | CEB |
| Component for | Workstation |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 7 |
| BIOS | |
| Clear CMOS button | Yes |
| Processor special features | |
| Trusted Platform Module (TPM) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Height | 287 mm |
| Weight | 2.3 kg |
| Width | 305 mm |
| Depth | 267 mm |
| Packaging content | |
| Cables included | SATA |
| Other features | |
| Height | 287 mm |
| Weight | 2.3 kg |
| Number of processors supported | 1 |
| Number of DIMM slots | 8 |
| Compatible operating systems | Windows 10 64-bit |
