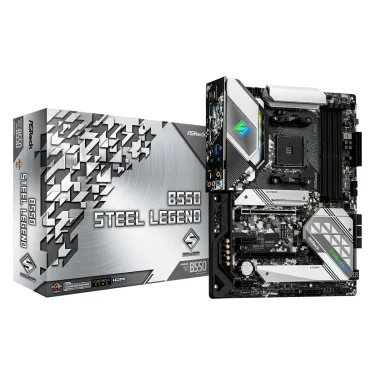

B550 STEEL LEGEND - AsRock Motherboard for 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors

Detail:	AsRock Motherboard for 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
SKU:	B550 STEEL LEGEND
Brand:	ASRock
Availability:	In stock

£175.20 £146.00

Your Save: 36.50Was £182.50 25% off

Easy Return

Enjoy hassle-free returns on all purchases.

Secure Payment

Shop confidently with our secure payment options.

Free Shipping

Free shipping on all orders*.

Product Overview

Product Information

Internal I/O
Number of M.2 (M) slots	2
Number of M.2 (E) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Peripheral (Molex) power connectors (4-pin)	1
Number of SATA III connectors	6
Number of chassis fan connectors	5
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Number of displays supported	2
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Supported processor sockets	Socket AM4
PC health monitoring	CPU, Fan, Temperature, Voltage, Water cooling
Parallel processing technology support	CrossFireX, Quad-GPU CrossFireX
HDMI version	2.1
Motherboard form factor	ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
RAID levels	0, 1, 10
Supported processor sockets	Socket AM4
PC health monitoring	CPU, Fan, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	3rd Generation AMD Ryzenâ„¢ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzenâ„¢ 7, 3rd Generation AMD Ryzenâ„¢ 9
Supported processor sockets	Socket AM4
Maximum number of SMP processors	1
Processor socket	Socket AM4
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4600,4666,4733 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
Maximum internal memory	128 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	4733 MHz
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 10
RAID support	Yes
Graphics
Number of displays supported	2
Parallel processing technology support	CrossFireX, Quad-GPU CrossFireX
Maximum resolution	5120 x 2880 pixels
HDCP	Yes
DirectX version	12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPort version	1.4
USB 2.0 ports quantity	4
WiFi-AP antenna jack	2
S/PDIF out port	Yes
PS/2 ports quantity	1
Microphone in	Yes
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Wake-on-LAN ready	Yes
LAN controller	Dragon RTL8125BG
Ethernet interface type	2.5 Gigabit Ethernet
Features
Power source type	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Supported processor sockets	Socket AM4
PC health monitoring	CPU, Fan, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	Realtek ALC1220
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	2
Number of M.2 (E) slots	1
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.1
System Management BIOS (SMBIOS) version	2.3
Power
Power source type	ATX
Video
Maximum resolution	5120 x 2880 pixels
HDCP	Yes
DirectX version	12.0
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Drivers included	Yes
Weight & dimensions
Height	70 mm
Weight	465 g
Width	305 mm
Depth	244 mm
Packaging content
Quick installation guide	Yes
Drivers included	Yes
Cables included	SATA
Other features
Number of M.2 (E) slots	1
Height	70 mm
Weight	465 g
Quick installation guide	Yes
