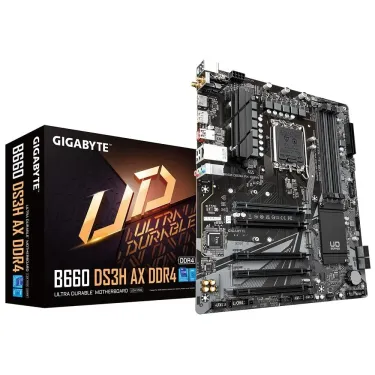

B660 DS3H AX DDR4 - Gigabyte LGA-1700 Socket System Board (Motherboard)

Detail:	Gigabyte LGA-1700 Socket System Board (Motherboard)
SKU:	B660 DS3H AX DDR4
Brand:	Gigabyte Technology
Availability:	In stock

£246.00 £205.00

Your Save: 51.25Was £256.25 25% off

Easy Return

Enjoy hassle-free returns on all purchases.

Secure Payment

Shop confidently with our secure payment options.

Free Shipping

Free shipping on all orders*.

Product Overview

Product Information

Internal I/O
Number of M.2 (M) slots	2
Thunderbolt headers	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Serial port headers	1
S/PDIF out connector	Yes
Number of SATA III connectors	4
Number of chassis fan connectors	3
Front panel audio connector	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel B660
Serial port headers	1
PC health monitoring	CPU, Fan, Temperature, Voltage
HDMI version	2.1
Motherboard form factor	ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel B660
RAID levels	0, 1, 5, 10
PC health monitoring	CPU, Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	Intel
Compatible processor series	IntelÂ® CeleronÂ®, IntelÂ® Coreâ„¢ i3, IntelÂ® Coreâ„¢ i5, IntelÂ® Coreâ„¢ i7, IntelÂ® Coreâ„¢ i9, IntelÂ® PentiumÂ®
Maximum number of SMP processors	1
Processor socket	LGA 1700
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
RAID support	Yes
Graphics
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
DisplayPort version	1.2
USB 2.0 ports quantity	4
WiFi-AP antenna jack	2
PS/2 ports quantity	1
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet interface type	Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	RZ608
Features
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel B660
PC health monitoring	CPU, Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	2
PCI Express x16 slots	2
BIOS
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Video
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Drivers included	Yes
Weight & dimensions
Height	70 mm
Weight	1 kg
Width	305 mm
Depth	244 mm
Packaging content
Drivers included	Yes
Cables included	SATA
Other features
Height	70 mm
Weight	1 kg
