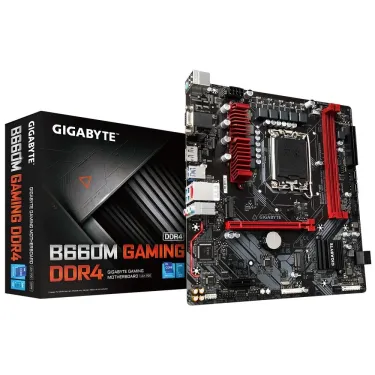

B660M GAMING DDR4 - Gigabyte LGA 1700 (Intel 12th Gen) microATX Motherboard
* NOTE: Image may not exactly match the product
£101.00
Incl. VAT:
£121.20
Incl. VAT:
Product Overview
The Gigabyte Technology B660M GAMING DDR4 is available at BulkDevices. Contact our customer service team for more information.
| Manufacturer | Gigabyte Technology |
|---|---|
| Manufacturer Part No. | B660M GAMING DDR4 |
| Condition | New |
| Warranty | 30-days |
Product Description
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B660 |
| PC health monitoring | Fan, Temperature, Voltage |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B660 |
| RAID levels | 0, 1, 5, 10 |
| PC health monitoring | Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| ECC | Yes |
| Non-ECC | Yes |
| Supported memory clock speeds | 4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DisplayPort version | 1.2 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B660 |
| PC health monitoring | Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Video | |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Drivers included | Yes |
| Bundled software | Norton Internet Security Realtek Gaming LAN Bandwidth Control Utility |
| Weight & dimensions | |
| Height | 63 mm |
| Weight | 899 g |
| Width | 244 mm |
| Depth | 225 mm |
| Packaging content | |
| Drivers included | Yes |
| Cables included | SATA |
| Bundled software | Norton Internet Security Realtek Gaming LAN Bandwidth Control Utility |
| Other features | |
| Height | 63 mm |
| Weight | 899 g |
