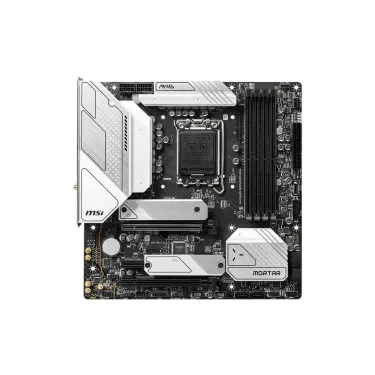

MAG B660M MORTAR WIFIDDR4 - MSI Gaming System Board Motherboard

SKU
MAG B660M MORTAR WIFIDDR4
Brand
MSI
Availability

In stock

£170.00
Incl. VAT: £204.00

Product Overview

The MSI MAG B660M MORTAR WIFIDDR4 is available at BulkDevices. Contact our customer service team for more information.

Manufacturer MSI
Manufacturer Part No. MAG B660M MORTAR WIFIDDR4
Condition New

Expert Team Support

Looking for a quote for special price or bulk quantity

Easy Return

Enjoy hassle-free returns on all purchases.

Secure Payment

Shop confidently with our secure payment options.

Product Description

Technical details
Motherboard chipset familyIntel
Motherboard chipsetIntel B660
Supported processor socketsLGA 1700
Parallel processing technology supportCrossfire
Motherboard form factormicro ATX
Component forPC
Audio
Audio output channels7.1 channels
Performance
Supported storage drive typesHDD & SSD
Motherboard chipset familyIntel
Motherboard chipsetIntel B660
RAID levels0, 1, 5, 10
Supported processor socketsLGA 1700
Audio output channels7.1 channels
Motherboard form factormicro ATX
Component forPC
Processor
Processor manufacturerIntel
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor socketsLGA 1700
Processor socketLGA 1700
Memory
Number of memory slots4
Memory slots typeDIMM
Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
Non-ECCYes
Supported memory clock speeds2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4400,4600,4800 MHz
Maximum internal memory128 GB
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
RAID levels0, 1, 5, 10
RAID supportYes
Graphics
Parallel processing technology supportCrossfire
Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
Number of chassis fan connectors2
Front panel audio connectorYes
EPS power connector (8-pin)Yes
CPU fan connectorYes
ATX Power connector (24-pin)Yes
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 2.0 ports quantity4
Microphone inYes
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
DisplayPorts quantity1
Network
Ethernet LANYes
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet interface type2.5 Gigabit Ethernet
BluetoothYes
Bluetooth version5.2
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Features
Motherboard chipset familyIntel
Motherboard chipsetIntel B660
Supported processor socketsLGA 1700
Audio output channels7.1 channels
Motherboard form factormicro ATX
Component forPC
Harmonized System (HS) code84733020
Expansion slots
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 slots2
Weight & dimensions
Height65 mm
Weight1 kg
Width244 mm
Depth244 mm
Other features
Height65 mm
Weight1 kg
