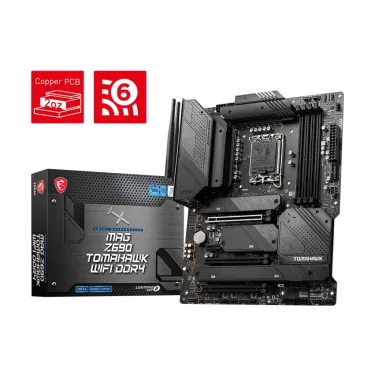

MAG Z690 TOMAHAWKWIFIDDR4 - MSI MAG Z690 TOMAHAWK WIFI DDR4 Motherboard
| Detail: | MSI MAG Z690 TOMAHAWK WIFI DDR4 Motherboard |
| SKU: | MAG Z690 TOMAHAWKWIFIDDR4 |
| Brand: | MSI |
| Availability: | In stock |
Your Save: 0.00Was £0.00 (Get a Quote)
Easy Return
Enjoy hassle-free returns on all purchases.
Secure Payment
Shop confidently with our secure payment options.
Free Shipping
Free shipping on all orders*.
Product Information
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 6 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z690 |
| Parallel processing technology support | Crossfire |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z690 |
| RAID levels | 0, 1, 5, 10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2666,2933 MHz |
| Maximum internal memory | 128 GB |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
| Parallel processing technology support | Crossfire |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Features | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z690 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC4080 |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI |
| BIOS memory size | 256 Mbit |
| System Management BIOS (SMBIOS) version | 3.4 |
| Weight & dimensions | |
| Height | 73 mm |
| Weight | 1 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Other features | |
| Height | 73 mm |
| Weight | 1 kg |
