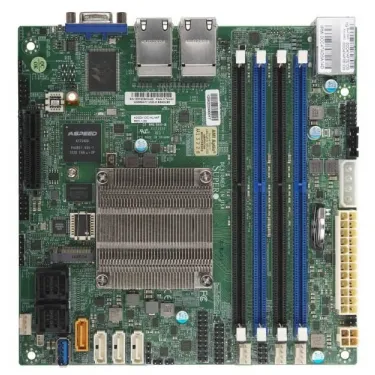

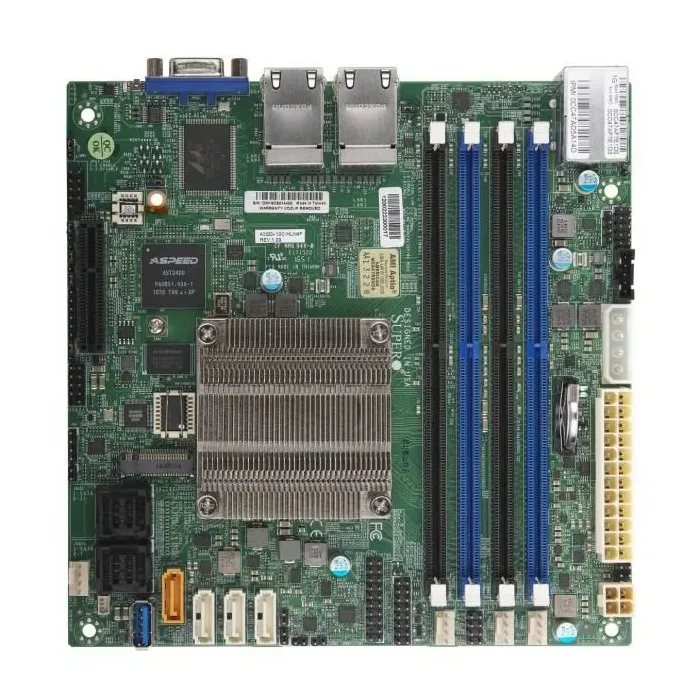

MBD-A2SDI-8C-HLN4F-B - Supermicro Intel Atom Processor C3758 Socket BGA-1310 Desktop Server Motherboard
* NOTE: Image may not exactly match the product
Product Overview
The Supermicro MBD-A2SDI-8C-HLN4F-B is available at BulkDevices. Contact our customer service team for more information.
| Manufacturer | Supermicro |
|---|---|
| Manufacturer Part No. | MBD-A2SDI-8C-HLN4F-B |
| Condition | New |
| Warranty | 30-days |
Product Description
| Technical details | |
|---|---|
| Motherboard chipset family | Intel |
| Serial port headers | 1 |
| On-board graphics adapter | Yes |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Performance | |
| Motherboard chipset family | Intel |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Atom® |
| Memory | |
| Registered | Yes |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 V |
| ECC | Yes |
| Non-ECC | Yes |
| Supported memory clock speeds | 1600,1866,2100,2400 MHz |
| Supported RDIMM clock speeds | 2400 MHz |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB, 64GB |
| Maximum internal memory | 256 GB |
| Maximum RDIMM memory | 256 GB |
| Maximum UDIMM memory | 64 GB |
| Unbuffered memory | Yes |
| Graphics | |
| On-board graphics adapter | Yes |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| TPM connector | Yes |
| Serial port headers | 1 |
| Number of SATA III connectors | 12 |
| Number of COM connectors | 1 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Power source type | ATX, DC |
| DC input voltage | 12 V |
| Motherboard chipset family | Intel |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Expansion slots | |
| PCI Express x4 (Gen 3.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| Power | |
| Power source type | ATX, DC |
| DC input voltage | 12 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating relative humidity (H-H) | 10 - 85% |
| Software | |
| Bundled software | IPMI2.0, KVM w/ dedicated LAN, NMI, SuperDoctor® 5, Watchdog |
| Weight & dimensions | |
| Width | 170.2 mm |
| Depth | 170.2 mm |
| Packaging content | |
| Bundled software | IPMI2.0, KVM w/ dedicated LAN, NMI, SuperDoctor® 5, Watchdog |
| Other features | |
| Registered | Yes |
| PCI Express x4 (Gen 3.x) slots | 1 |
| Supported RDIMM clock speeds | 2400 MHz |
| Maximum UDIMM memory | 64 GB |
