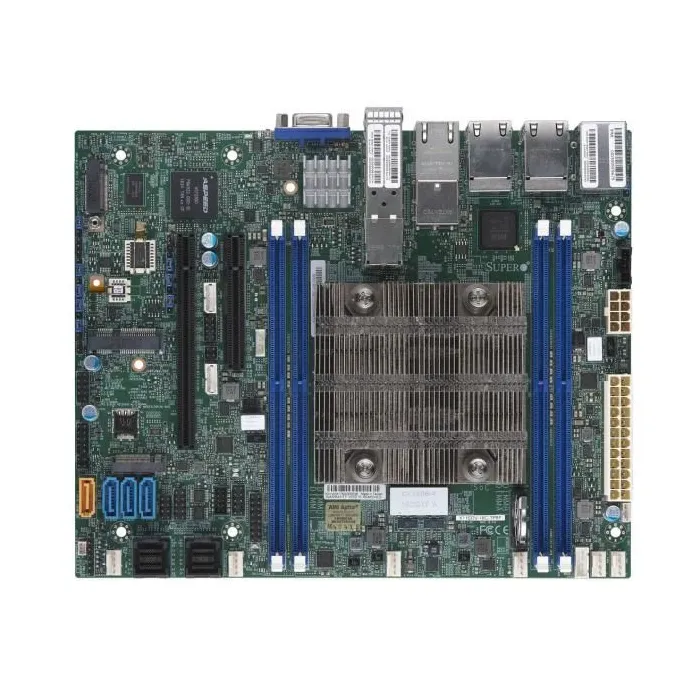

MBD-X11SDV-16C-TP8F-O - Supermicro Intel Xeon D-2183IT 16 Core Server Motherboard
* NOTE: Image may not exactly match the product
£3,200.00
Incl. VAT:
£3,840.00
Incl. VAT:
Product Overview
The Supermicro MBD-X11SDV-16C-TP8F-O is available at BulkDevices. Contact our customer service team for more information.
| Manufacturer | Supermicro |
|---|---|
| Manufacturer Part No. | MBD-X11SDV-16C-TP8F-O |
| Condition | New |
| Warranty | 30-days |
Product Description
| Technical details | |
|---|---|
| Motherboard chipset | System on Chip |
| Trusted Platform Module (TPM) | Yes |
| PC health monitoring | Fan, LED, Temperature, Voltage |
| Number of processors supported | 1 |
| Number of DIMM slots | 4 |
| Motherboard form factor | Flex-ATX |
| Form factor | Flex ATX |
| Sustainability certificates | RoHS |
| Performance | |
| Motherboard chipset | System on Chip |
| RAID levels | 0, 1, 5, 10 |
| Trusted Platform Module (TPM) | Yes |
| PC health monitoring | Fan, LED, Temperature, Voltage |
| Motherboard form factor | Flex-ATX |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Xeon® |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 V |
| ECC | Yes |
| Supported memory clock speeds | 2133,2400,2600 MHz |
| Supported RDIMM clock speeds | 2133,2400,2666 MHz |
| Supported RDIMM module capacity | 16GB, 32GB, 64GB |
| Maximum internal memory | 768 GB |
| Storage controllers | |
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card model | Aspeed AST2500 |
| Internal I/O | |
| Supported storage drive interfaces | SATA III |
| TPM connector | Yes |
| Number of SATA III connectors | 12 |
| Number of COM connectors | 1 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 6 |
| COM ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Motherboard chipset | System on Chip |
| PC health monitoring | Fan, LED, Temperature, Voltage |
| Motherboard form factor | Flex-ATX |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI |
| BIOS memory size | 128 Mbit |
| Plug and Play | Yes |
| Processor special features | |
| Trusted Platform Module (TPM) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 90% |
| Software | |
| Bundled software | IPMI2.0, KVM with dedicated LAN, Watchdog |
| Weight & dimensions | |
| Width | 228.6 mm |
| Depth | 184.2 mm |
| Packaging content | |
| Bundled software | IPMI2.0, KVM with dedicated LAN, Watchdog |
| Other features | |
| PCI Express x8 (Gen 3.x) slots | 1 |
| Supported RDIMM clock speeds | 2133,2400,2666 MHz |
| Supported RDIMM module capacity | 16GB, 32GB, 64GB |
| Number of processors supported | 1 |
| Number of DIMM slots | 4 |
| Supported DIMM module capacities | 16GB, 32GB, 64GB, 128MB |
| Supported LRDIMM module capacity | 16GB, 32GB, 64GB |
| Supported LRDIMM clock speeds | 2133,2400,2666 MHz |
