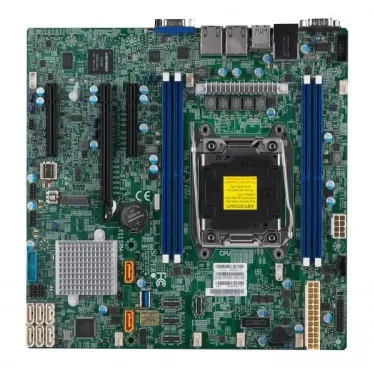

MBD-X11SRM-VF-B - Supermicro Intel C422 LGA-2066 Server Motherboard
* NOTE: Image may not exactly match the product
Product Overview
The Supermicro MBD-X11SRM-VF-B is available at BulkDevices. Contact our customer service team for more information.
| Manufacturer | Supermicro |
|---|---|
| Manufacturer Part No. | MBD-X11SRM-VF-B |
| Condition | New |
Product Description
| Technical details | |
|---|---|
| Motherboard chipset | Intel® C422 |
| Trusted Platform Module (TPM) | Yes |
| Number of processors supported | 1 |
| Number of DIMM slots | 4 |
| Motherboard form factor | micro ATX |
| Sustainability certificates | RoHS |
| Performance | |
| Motherboard chipset | Intel® C422 |
| RAID levels | 0, 1, 5, 10 |
| Trusted Platform Module (TPM) | Yes |
| Motherboard form factor | micro ATX |
| Processor | |
| Processor manufacturer | Intel |
| Processor thermal power (max) | 140 W |
| Processor socket | LGA 2066 (Socket R4) |
| Processor number of cores supported | 18 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 V |
| ECC | Yes |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Supported RDIMM clock speeds | 2133,2400,2666 MHz |
| Maximum internal memory | 256 GB |
| Maximum RDIMM memory | 128 GB |
| Storage controllers | |
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card model | Aspeed AST2500 |
| Internal I/O | |
| Supported storage drive interfaces | SATA III |
| Number of SATA III connectors | 8 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 2.0 ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| COM ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Motherboard chipset | Intel® C422 |
| Motherboard form factor | micro ATX |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| ACPI version | 6.0 |
| Processor special features | |
| Trusted Platform Module (TPM) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Width | 243.8 mm |
| Depth | 243.8 mm |
| Other features | |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| Supported RDIMM clock speeds | 2133,2400,2666 MHz |
| Number of processors supported | 1 |
| Number of DIMM slots | 4 |
| Supported DIMM module capacities | 4GB, 8GB, 16GB, 32GB, 64GB |
| Supported LRDIMM clock speeds | 2133,2400,2666 MHz |
| Maximum LRDIMM memory | 256 GB |
