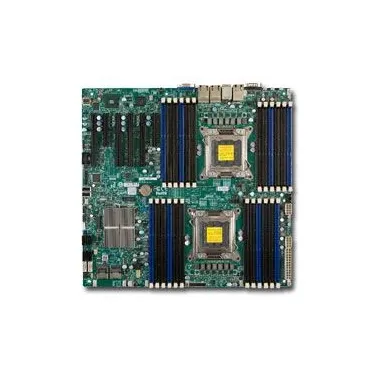

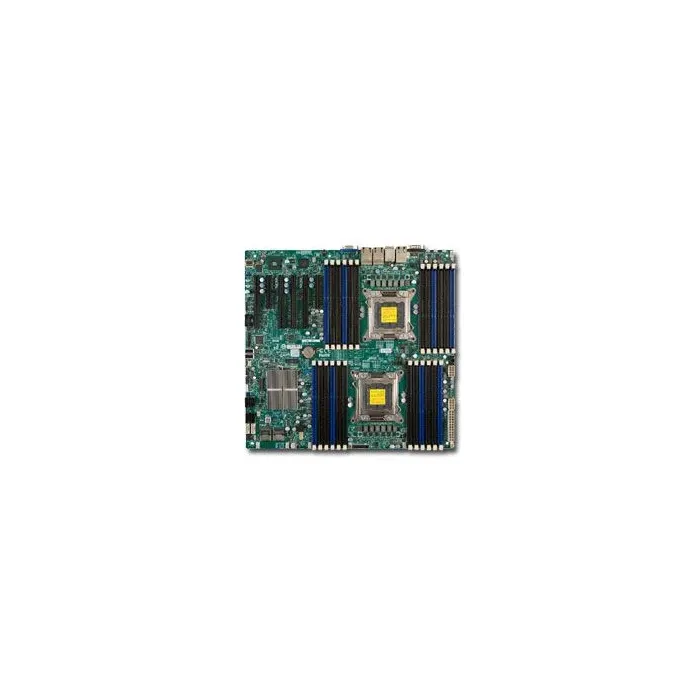

MBD-X9DR3-LN4F+-B - Supermicro Intel C606 Chipset Socket R LGA-2011 Server Motherboard
* NOTE: Image may not exactly match the product
£548.21
Incl. VAT:
£657.85
Incl. VAT:
Product Overview
The Supermicro MBD-X9DR3-LN4F+-B is available at BulkDevices. Contact our customer service team for more information.
| Manufacturer | Supermicro |
|---|---|
| Manufacturer Part No. | MBD-X9DR3-LN4F+-B |
| Condition | New |
| Warranty | 30-days |
Product Description
| Technical details | |
|---|---|
| Motherboard chipset | Intel® C606 |
| Serial port headers | 1 |
| Number of processors supported | 2 |
| Number of DIMM slots | 24 |
| Motherboard form factor | Extended ATX |
| Component for | Server |
| Sustainability certificates | RoHS |
| Performance | |
| Motherboard chipset | Intel® C606 |
| RAID levels | 0,1,5,10 |
| Motherboard form factor | Extended ATX |
| Component for | Server |
| Intelligent Platform Management Interface (IPMI) support | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Processor thermal power (max) | 135 W |
| Intel Xeon series | E5-2600 |
| Processor socket | LGA 2011 (Socket R) |
| Supported QPI | 6.4,7.2,8 GT/s |
| Processor number of cores supported | 4,6,8 |
| Memory | |
| Supported memory types | DDR3-SDRAM |
| Memory voltage | 1.35,1.5 V |
| ECC | Yes |
| Non-ECC | Yes |
| Supported memory clock speeds | 800,1066,1333,1600 MHz |
| Maximum internal memory | 768 GB |
| Maximum RDIMM memory | 768 GB |
| Maximum UDIMM memory | 128 GB |
| Storage controllers | |
| Supported storage drive interfaces | Serial Attached SCSI (SAS) |
| RAID levels | 0,1,5,10 |
| Graphics | |
| On-board graphics adapter model | Matrox G200eW |
| Internal I/O | |
| Supported storage drive interfaces | Serial Attached SCSI (SAS) |
| USB 2.0 connectors | 5 |
| TPM connector | Yes |
| Serial port headers | 1 |
| Power fan connector | Yes |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 4 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| IPMI LAN (RJ-45) port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Motherboard chipset | Intel® C606 |
| Motherboard form factor | Extended ATX |
| Component for | Server |
| Expansion slots | |
| PCI Express x8 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 4 |
| PCI Express slots version | 3.0 |
| BIOS | |
| BIOS type | AMI |
| BIOS memory size | 128 Mbit |
| Processor special features | |
| Intelligent Platform Management Interface (IPMI) support | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 90% |
| Software | |
| Bundled software | SuperDoctor® III Watch Dog, NMI |
| Weight & dimensions | |
| Width | 347 mm |
| Depth | 330 mm |
| Packaging content | |
| Quick installation guide | Yes |
| Bundled software | SuperDoctor® III Watch Dog, NMI |
| Other features | |
| Maximum UDIMM memory | 128 GB |
| Quick installation guide | Yes |
| Number of processors supported | 2 |
| Number of DIMM slots | 24 |
| Intel Xeon series | E5-2600 |
| Supported DIMM module capacities | 16GB, 1GB, 2GB, 32GB, 4GB, 8GB |
