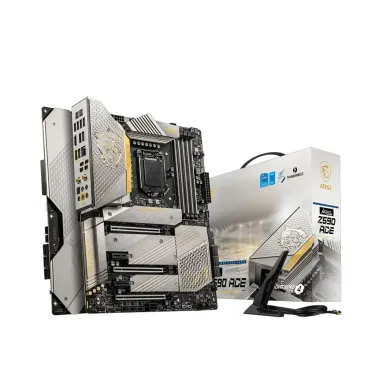

MEG Z590 ACE GOLD EDITION - MSI LGA 1200 ATX System Board (Motherboard)

SKU
MEG Z590 ACE GOLD EDITION
Brand
MSI
Availability

In stock

£420.00
Incl. VAT: £504.00

Product Overview

The MSI MEG Z590 ACE GOLD EDITION is available at BulkDevices. Contact our customer service team for more information.

Manufacturer MSI
Manufacturer Part No. MEG Z590 ACE GOLD EDITION
Condition New

Expert Team Support

Looking for a quote for special price or bulk quantity

Easy Return

Enjoy hassle-free returns on all purchases.

Secure Payment

Shop confidently with our secure payment options.

Product Description

Internal I/O
Number of M.2 (M) slots4
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
12V power connectorYes
Supported storage drive interfacesM.2, SATA III
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
TPM connectorYes
Number of SATA III connectors6
Front panel audio connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
ATX Power connector (24-pin)Yes
RGB LED pin headerYes
Technical details
Motherboard chipset familyIntel
Motherboard chipsetIntel Z590
Parallel processing technology support2-Way SLI, 3-Way CrossFireX
Motherboard form factorATX
Component forPC
Number of mounting holes9
Audio
Audio output channels7.1 channels
Performance
Windows operating systems supportedWindows 10 x64
Motherboard chipset familyIntel
Motherboard chipsetIntel Z590
RAID levels0, 1, 10
Audio output channels7.1 channels
Motherboard form factorATX
Component forPC
Processor
Processor manufacturerIntel
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Processor socketLGA 1200
Memory
Number of memory slots4
Memory slots typeDIMM
Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
Non-ECCYes
Supported memory clock speeds2133,2666,2933,3200,4000,4400,4800,5600 MHz
Maximum internal memory128 GB
Unbuffered memoryYes
Storage controllers
Supported storage drive interfacesM.2, SATA III
RAID levels0, 1, 10
RAID supportYes
Graphics
Parallel processing technology support2-Way SLI, 3-Way CrossFireX
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 2.0 ports quantity2
S/PDIF out portYes
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
Network
Ethernet LANYes
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
LAN controllerIntel WGI225V
Ethernet interface type2.5 Gigabit Ethernet
BluetoothYes
Bluetooth version5.2
Top Wi-Fi standardWi-Fi 6 (802.11ax)
WLAN controller modelIntel Wi-Fi 6E AX210
Features
Number of mounting holes9
Windows operating systems supportedWindows 10 x64
Motherboard chipset familyIntel
Motherboard chipsetIntel Z590
Audio output channels7.1 channels
Motherboard form factorATX
Component forPC
Audio chipRealtek ALC4082
Harmonized System (HS) code84733020
Expansion slots
Number of M.2 (M) slots4
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 slots3
BIOS
BIOS typeUEFI AMI
Clear CMOS jumperYes
Software
Windows operating systems supportedWindows 10 x64
Weight & dimensions
Width305 mm
Depth244 mm
