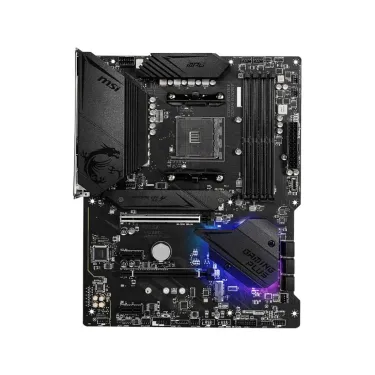

MPG B550 GAMING PLUS - MSI AM4 AMD ATX System Board (Motherboard)

Detail:	MSI AM4 AMD ATX System Board (Motherboard)
SKU:	MPG B550 GAMING PLUS
Brand:	MSI
Availability:	In stock

£166.80 £139.00

Your Save: 34.75Was £173.75 25% off

Easy Return

Enjoy hassle-free returns on all purchases.

Secure Payment

Shop confidently with our secure payment options.

Free Shipping

Free shipping on all orders*.

Product Overview

Product Information

Internal I/O
Number of M.2 (M) slots	2
12V power connector	Yes
Supported storage drive interfaces	SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Number of SATA III connectors	6
Number of chassis fan connectors	6
Front panel audio connector	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
PC health monitoring	CPU, Fan, Temperature
Parallel processing technology support	2-Way CrossFireX
Motherboard form factor	ATX
Component for	PC
Number of mounting holes	9
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	HDD & SSD
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
RAID levels	0, 1, 10
PC health monitoring	CPU, Fan, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	3rd Generation AMD Ryzenâ„¢ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzenâ„¢ 7, 3rd Generation AMD Ryzenâ„¢ 9
Maximum number of SMP processors	1
Processor socket	Socket AM4
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III
RAID levels	0, 1, 10
Graphics
Maximum graphics card memory	16000 MB
Parallel processing technology support	2-Way CrossFireX
Maximum resolution	4096 x 2160 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	4
S/PDIF out port	Yes
PS/2 ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
Digital audio optical out	1
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Realtek 8111H
Ethernet interface type	Gigabit Ethernet
Features
Number of mounting holes	9
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
PC health monitoring	CPU, Fan, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	Realtek ALC892
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
BIOS
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
Video
Maximum graphics card memory	16000 MB
Maximum resolution	4096 x 2160 pixels
Software
Drivers included	Yes
Weight & dimensions
Height	65 mm
Weight	1 kg
Width	305 mm
Depth	244 mm
Packaging content
Drivers included	Yes
Cables included	SATA
Other features
Height	65 mm
Weight	1 kg
