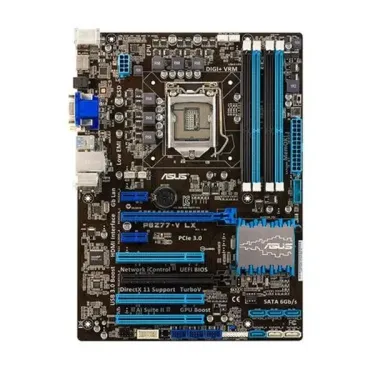

P8Z77-V-LX - ASUS P8Z77-V LX Socket LGA 1155 Intel Z77 Chipset 3/2 Gen Core i7 Pentium / Celeron Processors SATA 6.0Gb/s ATX Motherboard

Detail:	Asus P8Z77-V LX Socket LGA 1155 Intel Z77 Chipset 3/2 Gen Core i7 Pentium / Celeron Processors SATA 6.0Gb/s ATX Motherboard
SKU:	P8Z77-V-LX
Brand:	ASUS
Availability:	In stock

£277.24 £231.03

Your Save: 57.76Was £288.79 25% off

Easy Return

Enjoy hassle-free returns on all purchases.

Secure Payment

Shop confidently with our secure payment options.

Free Shipping

Free shipping on all orders*.

Product Overview

Product Information

ASUS P8Z77-V-LX Details

Buy P8Z77-V-LX - ASUS P8Z77-V LX Socket LGA 1155 Intel Z77 Chipset 3/2 Gen Core i7 Pentium / Celeron Processors SATA 6.0Gb/s ATX Motherboard is available at BulkDevices UK
We provide excellent customer service and we are always here when you need us.

Technical Specifications

Model
Manufacturer	ASUS
Manufacturer Part #	P8Z77-V-LX
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	LGA 1155
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor
Supported CPU Technologies	Intel Turbo Boost Technology
Chipset	Intel Z77 Express
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-14900 (DDR3-1866) PC3-16000 (DDR3-2000) PC3-19200 (DDR3-2400)
Maximum Installed Memory	32GB
Expansion Slots	PCI-E 2.0 x1 PCI-E 2.0 x16 PCI-E 3.0 x16
Expansion Slots Details	1 x PCIe 3.0/2.0 x16 (blue) *1 1 x PCIe 2.0 x16 (x4 mode, black) 2 x PCIe 2.0 x1 3 x PCI
Storage Controller	SATA 3.0 Gbps SATA 6.0 Gbps
Storage Controller Details	2 x SATA 6Gb/s port(s), gray 4 x SATA 3Gb/s port(s), blue
Shared Video Memory	1696 MB
Audio Controller	Realtek ALC887
Network	Gigabit Ethernet
Connectors/Ports	8-pin 12V Power Connector Audio-In Audio-Out Chassis Fan Connector CPU Fan Connector D-Sub PS/2 Keyboard PS/2 Mouse RJ-45 TPM Header USB 2.0 USB 3.1
Connectors/Ports Details	Internal I/O Ports 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 2 x Chassis Fan connector(s) (4 -pin) 1 x Power Fan connector(s) (3 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x MemOK! button(s) 1 x GPU Boost switch(es) 1 x Clear CMOS jumper(s) Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 4 x USB 2.0 1 x Optical S/PDIF out 3 x Audio jack(s)
