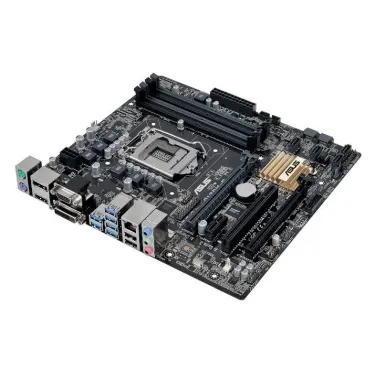

Q170M-C/CSM - Asus Desktop Motherboard Intel Q170 Chipset Socket LGA1151

Detail:	Asus Desktop Motherboard Intel Q170 Chipset Socket LGA1151
SKU:	Q170M-C/CSM
Brand:	ASUS
Availability:	In stock

£287.70 £239.75

Your Save: 59.94Was £299.69 25% off

Easy Return

Enjoy hassle-free returns on all purchases.

Secure Payment

Shop confidently with our secure payment options.

Free Shipping

Free shipping on all orders*.

Product Overview

Product Information

ASUS Q170M-C/CSM Details

Buy Q170M-C/CSM - Asus Desktop Motherboard Intel Q170 Chipset Socket LGA1151 is available at BulkDevices UK
We provide excellent customer service and we are always here when you need us.

Technical Specifications

Model
Manufacturer	ASUS
Manufacturer Part #	Q170MCCSM
Performance
Product Type	System Board
Form Factor	Micro ATX
CPU Socket Type	LGA 1151
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor
Chipset	Intel Q170
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC4-17000 (DDR4-2133)
Maximum Installed Memory	64 GB
Expansion Slots	PCI PCI-E 2.0 x1 PCI-E 2.0 x16 PCI-E 3.0 x1 PCI-E 3.0 x16
Storage Controller	SATA 6.0 Gbps
Audio Controller	Realtek ALC887
Network	Gigabit Ethernet
Connectors/Ports	D-Sub DVI-D PS/2 Keyboard PS/2 Mouse RJ-45 TPM Header USB 2.0 USB 3.1
Connectors/Ports Details	Back I/O Ports 1x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 6 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 3 x Audio jack(s) Internal I/O Ports 1 x MONO out header 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x LPT header 2 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x DIS ME jumper
