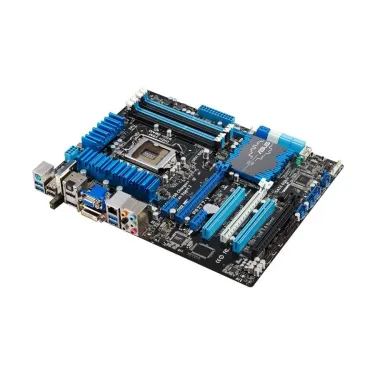

Z170-K - Asus Desktop Motherboard Z170 Chipset Socket H4

Detail:	Asus Desktop Motherboard Z170 Chipset Socket H4
SKU:	Z170-K
Brand:	ASUS
Availability:	In stock

£336.61 £280.51

Your Save: 70.13Was £350.64 25% off

Easy Return

Enjoy hassle-free returns on all purchases.

Secure Payment

Shop confidently with our secure payment options.

Free Shipping

Free shipping on all orders*.

Product Overview

Product Information

ASUS Z170-K Details

Buy Z170-K - Asus Desktop Motherboard Z170 Chipset Socket H4 is available at BulkDevices UK
We provide excellent customer service and we are always here when you need us.

Technical Specifications

Model
Manufacturer	ASUS
Manufacturer Part #	Z170K
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	LGA 1151
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor
Supported CPU Technologies	Intel Turbo Boost Technology
Chipset	Intel Z170
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC4-17000 (DDR4-2133) PC4-19200 (DDR4-2400) PC4-21333 (DDR4-2666) PC4-25600 (DDR4-3200)
Maximum Installed Memory	64 GB
Expansion Slots	PCI-E 2.0 x1 PCI-E 2.0 x16 PCI-E 3.0 x1 PCI-E 3.0 x16
Expansion Slots Details	1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 1 x PCIe 3.0/2.0 x16 (max at x4 mode, black) 2 x PCIe 3.0/2.0 x1 2 x PCI
Storage Controller	SATA 6.0 Gbps
Audio Controller	Realtek ALC887
Network	Gigabit Ethernet
Connectors/Ports	Audio-In Audio-Out Chassis Fan Connector COM CPU Fan Connector DVI-D HDMI PS/2 Keyboard PS/2 Mouse RJ-45 USB 2.0 USB 3.1
Connectors/Ports Details	Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 1 x 5Gb/s port(s) USB Type-CTM ( support 3A power output ) 2 x USB 3.1 Gen 2 (teal blue)Type-A 2 x USB 2.0 3 x Audio jack(s) Internal I/O Ports 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s)
