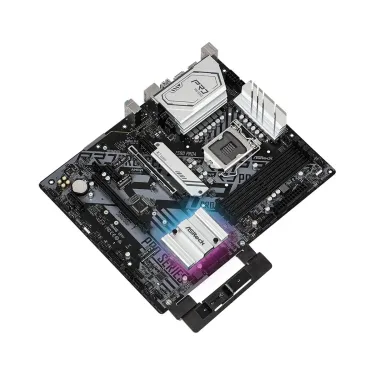

Z590 Pro4 - AsRock Intel Z590 Socket LGA1200 DDR4 ATX Motherboard

SKU
Z590 Pro4
Brand
ASRock
Availability

In stock

£190.00
Incl. VAT: £228.00

Product Overview

The ASRock Z590 Pro4 is available at BulkDevices. Contact our customer service team for more information.

Manufacturer ASRock
Manufacturer Part No. Z590 Pro4
Condition New

Expert Team Support

Looking for a quote for special price or bulk quantity

Easy Return

Enjoy hassle-free returns on all purchases.

Secure Payment

Shop confidently with our secure payment options.

Product Description

Internal I/O
Number of M.2 (M) slots1
Thunderbolt headers1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
12V power connectorYes
Supported storage drive interfacesM.2, SATA III
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
TPM connectorYes
Number of SATA III connectors6
Front panel audio connectorYes
EPS power connector (8-pin)Yes
CPU fan connectorYes
ATX Power connector (24-pin)Yes
RGB LED pin headerYes
Technical details
Motherboard chipset familyIntel
Motherboard chipsetIntel Z590
Motherboard form factorATX
Component forPC
Audio
Audio output channels7.1 channels
Performance
Windows operating systems supportedWindows 10 x64
Motherboard chipset familyIntel
Motherboard chipsetIntel Z590
Audio output channels7.1 channels
Motherboard form factorATX
Component forPC
Processor
Processor manufacturerIntel
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Processor socketLGA 1200
Memory
Number of memory slots4
Memory slots typeDIMM
Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
Non-ECCYes
Supported memory clock speeds4600,4800 MHz
Maximum internal memory128 GB
Unbuffered memoryYes
Storage controllers
Supported storage drive interfacesM.2, SATA III
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
DisplayPort version1.4
USB 2.0 ports quantity2
PS/2 ports quantity1
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
DisplayPorts quantity1
Network
Ethernet LANYes
Wi-FiNo
Wake-on-LAN readyYes
LAN controllerDragon RTL8125BG
Ethernet interface type2.5 Gigabit Ethernet
Features
Windows operating systems supportedWindows 10 x64
Motherboard chipset familyIntel
Motherboard chipsetIntel Z590
Audio output channels7.1 channels
Motherboard form factorATX
Component forPC
Harmonized System (HS) code84733020
Expansion slots
Number of M.2 (M) slots1
PCI Express x1 (Gen 3.x) slots3
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
BIOS
BIOS typeUEFI AMI
ACPI version6.0
System Management BIOS (SMBIOS) version2.7
Software
Windows operating systems supportedWindows 10 x64
Drivers includedYes
Weight & dimensions
Height70 mm
Weight1 kg
Width305 mm
Depth244 mm
Packaging content
Drivers includedYes
Cables includedSATA
Other features
Height70 mm
Weight1 kg
