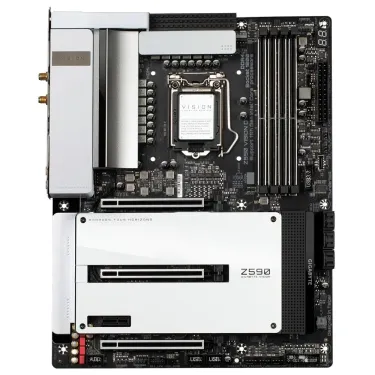

Z590 VISION D - Gigabyte LGA 1200 ATX Motherboard
| Detail: | Gigabyte LGA 1200 ATX Motherboard |
| SKU: | Z590 VISION D |
| Brand: | Gigabyte Technology |
| Availability: | In stock |
£180.00 £150.00
Your Save: 37.50Was £187.50 25% off
Easy Return
Enjoy hassle-free returns on all purchases.
Secure Payment
Shop confidently with our secure payment options.
Free Shipping
Free shipping on all orders*.
Product Information
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Power fan connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA III connectors | 6 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z590 |
| Supported processor sockets | LGA 1200 (Socket H5) |
| PC health monitoring | Fan, Temperature, Voltage |
| Parallel processing technology support | 2-Way CrossFireX, Quad-GPU CrossFireX |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z590 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1200 (Socket H5) |
| PC health monitoring | Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Supported processor sockets | LGA 1200 (Socket H5) |
| Processor socket | LGA 1200 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| ECC | Yes |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 9 |
| Graphics | |
| Parallel processing technology support | 2-Way CrossFireX, Quad-GPU CrossFireX |
| Maximum resolution | 5120 x 2880 pixels |
| HDCP | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-C |
| WiFi-AP antenna jack | 2 |
| Thunderbolt ports quantity | 2 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 5 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Features | |
| Windows operating systems supported | Windows 10 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z590 |
| Supported processor sockets | LGA 1200 (Socket H5) |
| PC health monitoring | Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC4080 |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 slots | 3 |
| PCI Express x1 slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Video | |
| Maximum resolution | 5120 x 2880 pixels |
| HDCP | Yes |
| Software | |
| Windows operating systems supported | Windows 10 x64 |
| Drivers included | Yes |
| Bundled software | Norton Internet Security, cFosSpeed |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Drivers included | Yes |
| Bundled software | Norton Internet Security, cFosSpeed |
