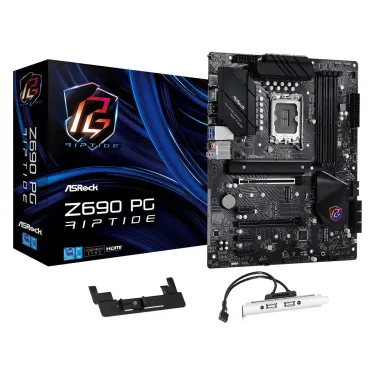

Z690 PG RIPTIDE - ASRock LGA 1700 Intel Z690 SATA 6Gb/s DDR4 ATX Intel Motherboard

Detail:	ASRock LGA 1700 Intel Z690 SATA 6Gb/s DDR4 ATX Intel Motherboard
SKU:	Z690 PG RIPTIDE
Brand:	ASRock
Availability:	In stock

£240.00 £200.00

Your Save: 50.00Was £250.00 25% off

Easy Return

Enjoy hassle-free returns on all purchases.

Secure Payment

Shop confidently with our secure payment options.

Free Shipping

Free shipping on all orders*.

Product Overview

Product Information

Internal I/O
Number of M.2 (M) slots	3
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Number of SATA III connectors	8
Number of chassis fan connectors	4
Front panel audio connector	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel Z690
PC health monitoring	CPU, Fan, Temperature, Voltage
Parallel processing technology support	CrossFire
HDMI version	2.1
Motherboard form factor	ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel Z690
RAID levels	0, 1, 5, 10
PC health monitoring	CPU, Fan, Temperature, Voltage
Certification	FCC, CE, ErP/EuP
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	Intel
Compatible processor series	IntelÂ® CeleronÂ®, IntelÂ® Coreâ„¢ i3, IntelÂ® Coreâ„¢ i5, IntelÂ® Coreâ„¢ i7, IntelÂ® Coreâ„¢ i9, IntelÂ® PentiumÂ®
Maximum number of SMP processors	1
Processor socket	LGA 1700
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Non-ECC	Yes
Supported memory clock speeds	4800 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
RAID support	Yes
Graphics
Parallel processing technology support	CrossFire
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 2.0 ports quantity	2
S/PDIF out port	Yes
PS/2 ports quantity	1
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Digital audio optical out	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Wake-on-LAN ready	Yes
LAN controller	Killer E3100G
Ethernet interface type	2.5 Gigabit Ethernet
Features
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel Z690
PC health monitoring	CPU, Fan, Temperature, Voltage
Certification	FCC, CE, ErP/EuP
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	Realtek ALC897
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	3
PCI Express x1 (Gen 3.x) slots	3
PCI Express x16 slots	2
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	6.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Video
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Certificates
Certification	FCC, CE, ErP/EuP
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Drivers included	Yes
Weight & dimensions
Height	70 mm
Weight	1 kg
Width	305 mm
Depth	244 mm
Packaging content
Drivers included	Yes
Cables included	SATA
Other features
Height	70 mm
Weight	1 kg
