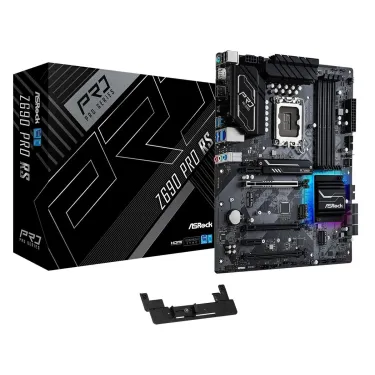

Z690 PRO RS - ASRock LGA 1700 Intel Z690 SATA 6Gb/s DDR4 ATX Intel Motherboard
| Detail: | ASRock LGA 1700 Intel Z690 SATA 6Gb/s DDR4 ATX Intel Motherboard |
| SKU: | Z690 PRO RS |
| Brand: | ASRock |
| Availability: | In stock |
£201.60 £168.00
Your Save: 42.00Was £210.00 25% off
Easy Return
Enjoy hassle-free returns on all purchases.
Secure Payment
Shop confidently with our secure payment options.
Free Shipping
Free shipping on all orders*.
Product Information
| Technical details | |
|---|---|
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z690 |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z690 |
| RAID levels | 0, 1, 5, 10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| ECC | Yes |
| Maximum internal memory | 128 GB |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 11 |
| RAID support | Yes |
| Graphics | |
| HDCP | Yes |
| Internal I/O | |
| Thunderbolt headers | 1 |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA III connectors | 8 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z690 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| ACPI version | 6.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Video | |
| HDCP | Yes |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
| Height | 70 mm |
| Weight | 1 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Other features | |
| Height | 70 mm |
| Weight | 1 kg |
